Categories are used to organize the map sidebar and group locations together. Sub-categories can be used to break information down further for users.
How to Create a New Category

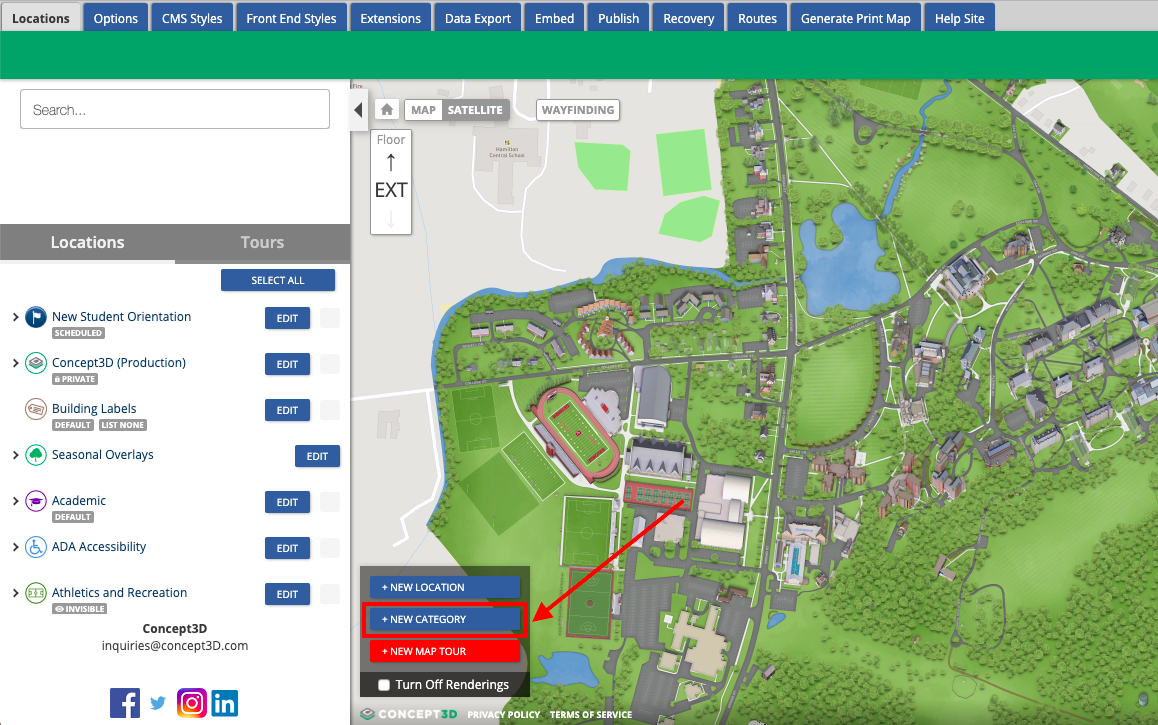

1. Once logged into the CMS, click the blue button titled New Category in the bottom left corner of the map.

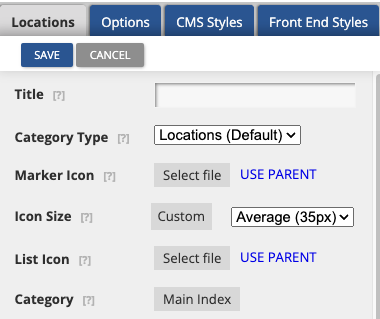

2. Fill out the basic required content:
- Title: Name of category to display in the sidebar
-
Category Type:
- Locations (Default)
- Panorama
- Dynamic Label
- Dynamic Label V2 (If enabled)
- Marker Icon: The icon that appears on the map for locations in this category.
-
List Icon: The icon that appears next to this category in the sidebar.
- Access a library of icons here.
- Category: Choose whether to have this category in the Main Index or to be a subcategory.
3. Update additional settings for customization and user experience:
- List Position: Adjust the hierarchy in which the categories are listed. Sidebar hierarchy will default to alphabetical order if not adjusted.
- List Type: Select All to display all locations under the category in the sidebar when expanded. Select None to make the category non-expandable - locations will still display on the map.
- Checkbox: This allows you to remove the checkbox from a category. If the checkbox setting is set to FALSE, the category cannot be turned on or off by front end users. Subcategories are not affected by the parent category's setting.
- Location Display Option: This will override the global setting for that category only. All subcategories and categories need to be set individually to override the global setting. Choose to default to the global setting, display information in the sidebar or balloon, or if no information for that location select No Info.
- Zoom Visibility: Set location markers within the category to display only on certain zoom levels.
- Single Select: Allow only one subcategory to be selected at a time under the parent category.
- Panorama Category: Only applies to those with 360 panoramas on the map. If enabled, locations with a panorama added to it will display the panorama full screen.
- Hidden From Sidebar: Category will not display in the sidebar, but locations under this category remain searchable on the front end of the map.
- Default Display: Have the category automatically selected upon first load of the map and when the home button is clicked.
- Visible: This makes the category invisible on the front end of the map.
- Private: Category only visible on the front end of the map with a shareable custom URL.
- Schedule: Select a date/time range for the category to display on the front end of the map.
- Category View: Set the map view and zoom for when the category is toggled on.
- Marker Zoom: Set the zoom level for all locations under the category when they are selected on the map.
- Searchable: Choose whether to return locations in the category within search results.
- Feed Type: Leave as No unless specified by Client Success Manager.
- Fallback Data: Locations in the category without custom description will display the content added here on the front end of the map.
- Labels: Tag the category for bulk editing. This feature allows CMS users to bulk edit locations to be visible, private or scheduled. This is best used to bulk edit locations that live under different categories.
4. Save and publish once all the content is entered!
Creating "Always On" ability with Categories

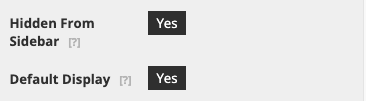

By using the Hidden from Sidebar and Default Display category settings, you can make sure your markers, locations or labels are always displaying on front end map
- Make sure Hidden From Sidebar is set to Yes - this prevents visitors from toggling the label on or off
- Next, make sure Default Display is set to Yes - this means the label will be toggled ON when loading the map
- Since the label is on by default, and cannot be toggled off - this creates Always On functionality.
